Ballistic Approach Lite(C-22AE) Aircraft Detail
 Information
 Launch Log
|
|
|
Rocket/Aircraft Details
|
| Name: |
Ballistic Approach Lite |
| Aircraft Type: |
Rocket |
| Manufacturer : |
Ballistic Approach |
| Model: |
Lite |
|
|
Aircraft Configuration Details
3/38
3/29
| 3/38 (Default/Original Configuration )
|
| Constructed/Completed: |
2014/03/18 |
| Config. Status: |
Operational |
| Height: |
54.00in |
| Payload bay: |
5.50in |
| Diameter: |
3.10in |
| CP: |
40.00in from tip |
| Dry weight : |
1.20kg |
|

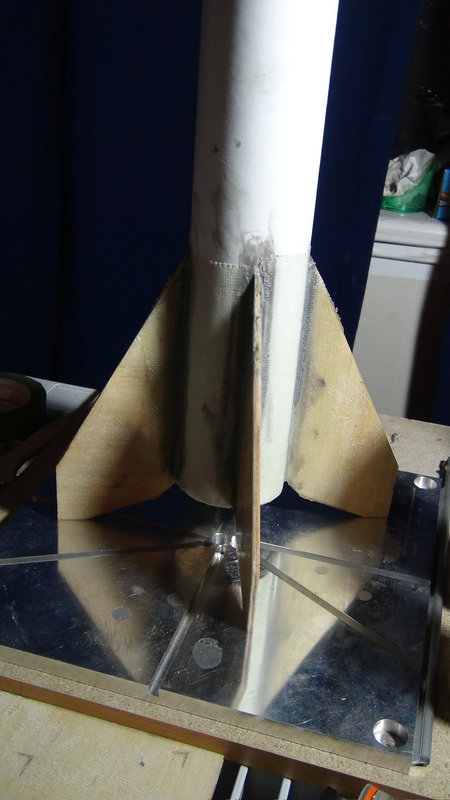

| Fins: |
Balsa wood |
| Body: |
Paper/Cardboard |
|
* Onboard video
|
| White with blue lettering & decals with yellow accents. |
|
| Main Stage:
1 x 38mm, Retention ring (eg: Aeropack, Slimline)
|
| Recovery event 1 configuration:
Motor discharge
1 x
30.00in. (Spill hole:2.00in.) Dome chute
|
|
|
Single deployment version of Ballistic Approach.
|
|
| 3/29 (Alternate Configuration )
|
| Constructed/Completed: |
2014/03/18 |
| Config. Status: |
Operational |
| Height: |
57.50in |
| Payload bay: |
5.50in |
| Diameter: |
3.10in |
| CP: |
38.00in from tip |
| Dry weight : |
1.35kg |
|
| Fins: |
Balsa wood |
| Body: |
Paper/Cardboard |
|
* Onboard video
|
| White with blue lettering & decals with yellow accents. |
|
| Main Stage:
1 x 29mm, Retention ring (eg: Aeropack, Slimline)
|
| Recovery event 1 configuration:
Motor discharge
1 x
36.00in. (Spill hole:4.00in.) Dome chute
|
|
|
Single deployment version of Ballistic Approach. Onboard test 3D cam & GPS.
|
|
|
Launch log
| Flight |
Alt. |
Motor |
Recovery |
Status |
Cert. |
Notes |
5. 2015/10/12 "H100 "
Cfg.:3/38
Ciel d'Octobre 2015 St-Pie-de-Guire,QC,CA
|
1600.00ft Estimated |
38mm CTI 286-H100-10
|
Dome chute 30.00in w. 2.00in (spill)
|
Success |
-- |
Repeat flight; 2nd 3D attempt |
|
4. 2015/10/10 "H100 first 38"
Cfg.:3/38
Ciel d'Octobre 2015 St-Pie-de-Guire,QC,CA
|
1600.00ft Estimated |
38mm CTI 266-H100-10
|
Dome chute 30.00in w. 2.00in (spill)
|
Success |
-- |
Rocket should be 38mm cato safe :) |
|
3. 2014/07/05 "H53 Longburner"
Cfg.:3/29
VIPE 2014 St-Prime,QC,CA
|
|
29mm CTI 234-H53-12
|
Dome chute 36.00in w. 4.00in (spill)
|
Success |
-- |
3D cam |
|
2. 2014/05/31 "H54 Longburn"
Cfg.:3/29
Fusée Fête 2014 St-Pie-de-Guire,QC,CA
|
|
29mm CTI 168-H54-10
|
Dome chute 36.00in w. 4.00in (spill)
|
Success |
-- |
720/60p 3D flight |
|
1. 2014/05/31 "H135W Maiden flight"
Cfg.:3/29
Fusée Fête 2014 St-Pie-de-Guire,QC,CA
|
|
29mm AT 226-H135
|
Dome chute 36.00in w. 4.00in (spill)
|
Success |
-- |
Aiptek 3D flight |
|
| Count: 5 |
|
