Condore X10(C-228B) Aircraft Detail

Information

Launch Log

Media

Web links, pictures, documents & more

More media...

Rocket/Aircraft Details

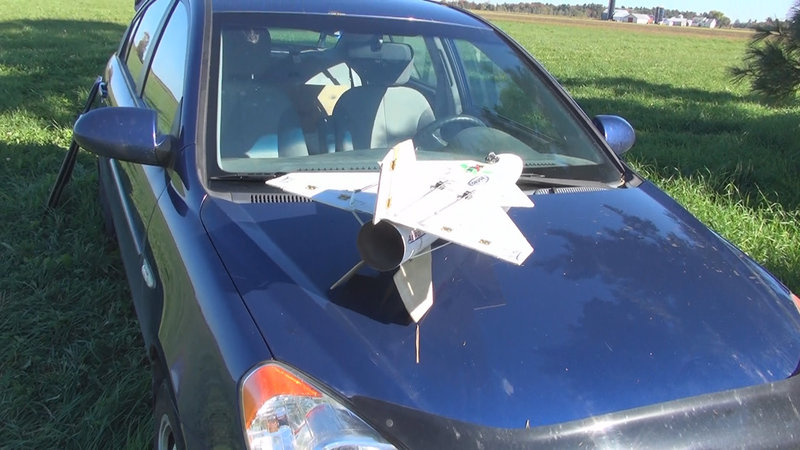

Name:	Condore X10
Aircraft Type:	Glider
Manufacturer :	Project Condore
Model:	X10

Aircraft Configuration Details

X10

X10A

X10B

X10C

X10 (Default/Original Configuration )

General Details
Constructed/Completed:	2014/03/31
Config. Status:	Damaged (terminal)
Dimensions
Height:	36.50in
Payload bay:	8.00in
Diameter:	3.90in
CP:	25.50in from tip
Dry weight :	2.38kg

Materials
Fins:	Other
Body:	Paper/Cardboard (heavy duty)
Misc. Parameters
* Special purpose electronics
* Onboard video
Unpainted, mostly white/bare.

Motor Mount Definition
Main Stage: 1 x 29mm, Retention ring (eg: Aeropack, Slimline)

Recovery Definition
Recovery event 1 configuration: Altimeter (Apogee w/Delay) Backup: Altimeter (Altitude) Alt. (Def.): 200.00ft 1 x 48.00in. (Spill hole:8.00in.) Dome chute

Low power Condore aircraft full FPV, CF pushrods, Triplefire

Launch log

Flight

Alt.

Motor

Recovery

Status

Cert.

Notes

15. 2014/05/31 "UF02 Routine"
Cfg.:X10
Fusée Fête 2014 St-Pie-de-Guire,QC,CA

550.00ft Estimated

29mm CTI 226-H135

Dome chute 48.00in w. 8.00in (spill)

Fail (Other)

Electrical failure, lost power, no chute, no controls

14. 2014/05/31 "UF01 RTF Checkout"
Cfg.:X10
Fusée Fête 2014 St-Pie-de-Guire,QC,CA

530.00ft Altimeter

29mm CTI 226-H135

Dome chute 48.00in w. 8.00in (spill)

Success

Return to flight checkout, first UAV config

13. 2013/11/17 "CF08 TripleFire Test (Ext)"
Cfg.:X10C
XR 2013 Rawdon,QC,CA

586.00ft Altimeter

29mm AT WL 226-H-135

Dome chute 48.00in

Fail (Separation)

Extended flight, no altimeter for backup. Shock cord failed at deployment.

12. 2013/11/17 "CF07 Triplefire test"
Cfg.:X10C
XR 2013 Rawdon,QC,CA

545.00ft Altimeter

29mm AT 226-H-135

Dome chute 48.00in

Success

Altimeter 3s post apogee delay; Triple Fire to be used before altimeter.

11. 2013/10/13 "CF06 Standard (Ext)"
Cfg.:X10C
Ciel D'Octobre 2013 St-Pie-de-Guire,QC,CA

336.00ft Altimeter

29mm CTI BS 159-G118-10

Dome chute 48.00in w. 8.00in (spill)

Success

Repeat flight for pilot practice

10. 2013/10/13 "CF05 Standard"
Cfg.:X10C
Ciel D'Octobre 2013 St-Pie-de-Guire,QC,CA

334.00ft Altimeter

29mm CTI BS 159-G118-10

Dome chute 48.00in w. 8.00in (spill)

Success

Showtime; quick post-CATO turn around. Great flight.

9. 2013/10/13 "CF04 Standard"
Cfg.:X10C
Ciel D'Octobre 2013 St-Pie-de-Guire,QC,CA

29mm AT WL 226-H135-10

Dome chute 48.00in w. 8.00in (spill)

Fail (CATO)

Motor CATO; only incredibly minor damage to aircraft.

8. 2013/09/28 "CF03 Medium RC"
Cfg.:X10C
The freedom

722.00ft Altimeter

29mm CTI 268-H140-11

Dome chute 48.00in w. 8.00in (spill)

Success

Higher RC flight; provided for nice and steady flight with sustained straight-and-level flight with minor roll oscillation.

7. 2013/09/28 "CF01 Standard RC"
Cfg.:X10C
The Freedom

344.00ft Altimeter

29mm CTI 159-G125-11

Dome chute 48.00in w. 8.00in (spill)

Success

First RC flight; great performance, glide not optimal but chute recovered well

6. 2013/09/28 "CF02 Standard RC"
Cfg.:X10C
The Freedom

346.00ft Altimeter

29mm CTI 159-G125-11

Dome chute 48.00in w. 8.00in (spill)

Success

Second RC flight; glide control was better, descent rate reduced before deployment.

5. 2013/07/29 "RF05 Test Flight 4"
Cfg.:X10B
The Freedom

986.00ft Altimeter

29mm CTI 229-H255-11

Dome chute 48.00in w. 8.00in (spill)

Success

Stress test

4. 2013/07/28 "RF04 Test Flight 3"
Cfg.:X10B
The Freedom

581.00ft Altimeter

29mm CTI 159-G125

Dome chute 48.00in w. 8.00in (spill)

Success

X10B 3 grain test; 1-2s apogee delay

3. 2013/07/28 "RF03 Test Flight 2"
Cfg.:X10B
The Freedom

331.00ft Altimeter

29mm CTI 110-G250

Dome chute 48.00in w. 8.00in (spill)

Success

X10B repeat short flight; 1s apogee delay. 50gr removed in nose.

2. 2013/07/28 "RF02 Test Flight 1"
Cfg.:X10B
The Freedom

321.00ft Altimeter

29mm CTI 110-G250

Dome chute 48.00in w. 8.00in (spill)

Success

X10B maiden flight; 1s apogee delay

1. 2012/10/07 "RF01 Test Flight"
Cfg.:X10A
Ciel d'octobre 2012 St Pie de Guire,QC,CA

29mm CTI 138-G106-10s

Dome chute 42.00in

Fail (Other)

Horizontal flight with subsequent crash

Count: 15
